FSFS雙倉平篩
作者:admin 發布日期:2019-10-23 點擊量:

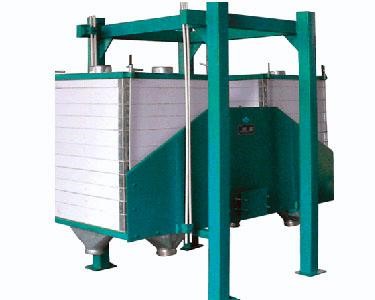

FSFS雙倉平篩(圖1)


該機是對瑞士布勒公司同類樣機消化吸收而設計的新產品,主要用于面粉廠高校面粉檢查,也可用作研磨后粉料的篩理與分級,還可以用于其它領域粉粒料的篩理與分級,比如玉米加工、飼料加工、化工、醫藥等行業。
This type of equipment is newly designed based on similar equipment of Switzerland Buhler Group, which is mainly used for flour inspection in flour mill, and it can be also used for sifting and grading of the ground powder materials, as well as sifting and grading of powdery and granular materials in other industries, such as corn milling, feed processing, chemical engineering, medicine, etc.

特點:
Characteristics:

1、 篩框和篩格易于安裝和拆卸;
It is easy to install and disassemble the screen frame and lattice;

2、 吊桿采用玻璃鋼吊桿;
Fiberglass suspender is adopted;

3、 密封性好,無粉塵外揚;
It is featured with satisfactory sealing effect, free of flying dust;

4、 篩格和篩芯采用優質木材制作,篩格使用鋁制包角;
Lattice and sieve core are made of high-quality wood, and aluminium wrap angle is adopted for lattice;

技術參數:
Technical parameters:

型號Model

FSFS83×2

FSFS100×2

篩格規格Spec. of lattice (mm)

830×830

1000×1000

設備功率 Equipment power (kw)

1.5

2.2

篩理面積(㎡) Sifting area (㎡)

7.08

10

主軸轉速(r/min) Main shaft speed (r/min)

240-255

回轉半徑 Turning radius (mm)

22.5-27.5

外形尺寸(長×寬×高)mm Boundary dimension (L × W × H) mm

2150×1594×2100

2640×1903×2270

設備質量 Equipment weight (kg)

990

1550
