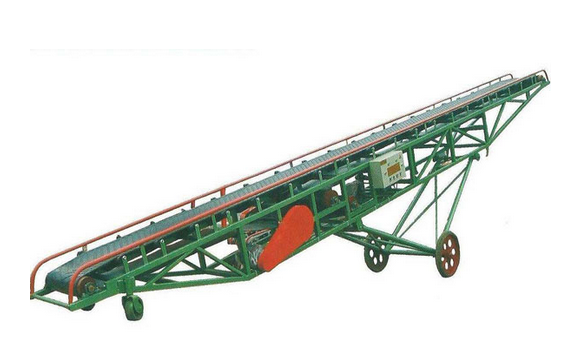

該機用于散運、包裝的糧食或其他小顆粒物料的輸送、裝卸、碼架、倒倉等多種作用。機架堅固耐用，輸送帶無接口，運行平穩(wěn)。
It is used for conveying, loading & unloading, stacking, transfer among silos, etc. of loose-packed & packaged grains or other granular materials. The rack is sturdy and durable; the conveyer belt has no joint, and it can operate stably.
特點：
Characteristics:
1、可移動使用，節(jié)約成本。
The equipment is mobile, which can save the cost.
2、操作簡便，維修方便。
It is featured with easy operation and maintenance.
3、輸送帶無借口，運行平穩(wěn)。
The conveyer belt has no joint, and it can operate stably.
技術參數：
Technical parameters:
|
規(guī)格型號 Spec. & model |
輸送量 Conveying capacity |
帶寬（mm） Belt width (mm) |
線速度（m/s） Line speed (m/s) |
輸送高度（m） Conveying height (m) |
允許裝物寬（mm） Allowable width of materials (mm) |
長度（m） Length (m) |
機寬度（mm） Equipment width (mm) |
動力（kW） Power (kW) |
升降功率（kW） Lifting power (kW) |
|
|
包裝包/h Packaged bag/h |
散裝t/h Loose-packed t/h |
|||||||||
|
TDSL50×6 |
720 |
45-60 |
500 |
1-3 |
1.8-2.2 |
≤600 |
6 |
686 |
2.2 |
0.75 |
|
TDSL50×8 |
2.0-3.7 |
8 |
2.2 |
|||||||
|
TDSL50×10 |
2.3-4.3 |
10 |
3.0 |
1.1 |
||||||
|
TDSL50×12 |
2.5-5.0 |
12 |
4.0 |
|||||||
|
TDSL50×15 |
2.8-6.5 |
15 |
4.0 |
1.5 |
||||||
|
TDSL50×18 |
3.4-7.3 |
18 |
5.5 |
|||||||
|
TDSL50×20 |
4.0-8.5 |
20 |
5.5 |
2.2 |
||||||
|
TDSL50×22 |
4.5-9.5 |
22 |
5.5 |
|||||||
