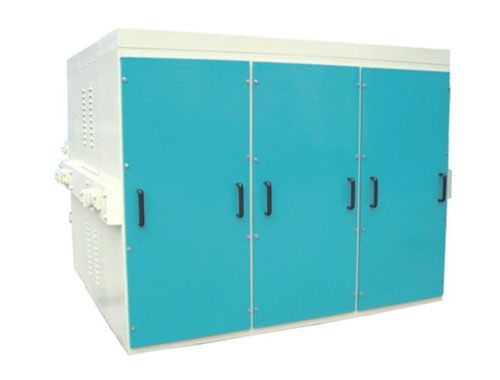

FSFC series square plansifter
author: time:2019-11-29

  Explain:

  This type of equipment is one of the main equipment in flour milling industry, which is mainly used for sifting and grading of the ground materials. It can also be used as an inspection sieve, as well as for handling and grading of powder materials in medicine, chemical engineering, plastic, brewing and other industries.

  Characteristics:

  1、 All surfaces contacting the materials are isolated effectively to ensure satisfactory sanitary conditions;

  2、It is easy and convenient to contact and clean the material channel;

  3、 It is easy to install and disassemble the screen frame;

  4、 Large sifting area and optimum space utilization ability can be provided;

  5、 High-quality fiberglass suspender is adopted;

  6、 Sealing strips in screen body are complete, and all joints are well sealed;

  Technical parameters:

Model

Spec. of lattice (cm)

Sifting area ()

Standard lattice

Total height of lattice (mm)

Excluding sieve bottom

Main shaft speed (r/min)

Turning diameter (mm)

Motor power (kw)

Equipment weight (kg)

Boundary dimension (L × W × H) mm

FSFC4×18-24

634×634

20.4

1400

240-245

60-85

3

2500

1797×2400×2200

FSFC6×18

30.4

1400

3

3500

2563×2400×1650

FSFC6×24

40.4

1860

4

5300

2563×2400×2200

FSFC6×34

47.1

2030

5.5

6200

2563×2580×2780
